Boat on a Davit Master Elevator Lift

Elevator Boat Lifts

Rise Above Rough Shores With Our Marine Elevator

Davit Master's Elevator Lifts are designed to work in less than ideal environments for boats and personal

watercrafts. They offer accessibility in rocky rip rap or where piles are not accessible. They can be utilized for

straight up and down operation, or at an angle to overcome obstacles.


The Elevator comes in two varieties:

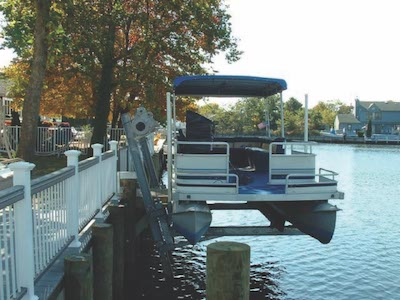

Dual Track Elevator (16,000lb capacity up to a 35 degree slope)

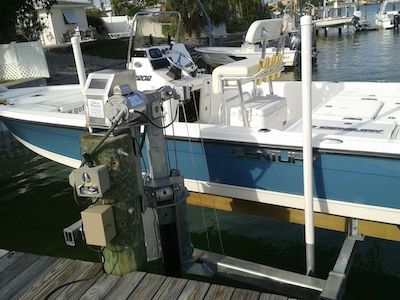

Single Track Epoch (for smaller crafts up to 4,500lbs)


The Dual and Single tracks are powered by a Direct Drive winch with a totally enclosed aluminum gear

box and weather resistant stainless steel motor.

Ask about optional features such as a remote control system with a limit switch, and marine

grade aluminum ladders for ease-of-access.


Capacity No. of Motors Horsepower E-Drive System Amps per 110v-220v Aluminum Tracks Aluminum Carriage & Arms Carpeted #1 PT Boards
4000 (2) 3/4 HP SS MODEL 480 26 - 13 7" I-Beam 7" I-Beam 3" x 10" x 12'
8000 (2) 3/4 HP SS MODEL 480 26 - 13 8" I-Beam 8" I-Beam 3" x 10" x 12'
12000 (2) 1 HP SS MODEL 480 27.2 - 13.6 9" I-Beam 9" I-Beam 3" x 12" x 12'
14000 (2) 1.5 HP SS MODEL 600 30.4 - 15.2 10" I-Beam 10" I-Beam 3" x 12" x 14'
16000 (2) 1.5 HP SS MODEL 600 30.4 - 15.2 10" I-Beam 10" I-Beam 3" x 12" x 16'
  • All welded design for strength and durability
  • 6061-T6 marine grade aluminum
  • Heavy duty adjustable PVC pipe guides with insert reinforcement
  • Adjustable chock system
  • Stainless steel motors for added protection
  • Carpeted #1 pressure treated 3” timber chocks
  • Stainless steel cables with aluminum grooved cable winders
  • Aluminum sheaves with Stainless steel bolts with grease fittings
  • Enclosed Direct Drive Aluminum Winch with internal oil bath is rust-resistant, quiet and dependable
  • Easy Installation with instructions and technical support
  • Product liability insurance
  • Comprehensive warranty
  • Track slope options 0° - 45°
  • Seawall or Piling mount designs
  • Wireless remote control system
  • Limit switch for auto-stop for upper and lower set points
  • Vinyl covered aluminum bunks for aluminum systems
  • Custom chocks: Riser, T-style and Pontoon styles
  • Aluminum walkways for convenient access
  • Aluminum work platforms for access to the stern and outdrive
  • Aluminum steps
  • Hinged tracks for winterization on flat base models
  • Disconnect switch
  • Travel lengths
  • Pile Spacing
  • Arm lengths
Model Capacity Winch Controls Base Lift Arms
Epoch 3000 3000 lbs Electric EPOCH 3000 GEARED with .75 HP 1725 SS MOTOR Rope Lever Reversing Switch Pile, Seawall, Dock 8' - 8"
Epoch 4500 4500 lbs Electric EPOCH 4500 GEARED with 1 HP 1725 SS MOTOR Rope Lever Reversing Switch Pile, Seawall, Dock 8' - 8"
  • Seawall or Pile mount designs
  • Quiet dependable operation
  • Low profile design that minimizes water and dock space footprint
  • All welded construction for strength and durability
  • 6061-T6 marine grade aluminum
  • Adjustable chock system with carpeted boards
  • Inboard PVC guide posts
  • Aluminum sheaves & stainless bolts with grease fittings
  • Aluminum travel wheels & stainless bolts with grease fittings
  • Stainless steel cable
  • Stainless steel safety cable with protective cover
  • Sacrificial Zinc plate with wire
  • Easy installation with instructions and technical support
  • Comprehensive warranty
  • Product liability Coverage
  • Wireless remote controls
  • Outboard PVC pipe guides
  • Stainless steel track
  • Extended lift arms for dual PWC's and Larger skiffs
  • Extended track for deep water
  • Extra chocks for dual PWC's
  • Motor covers
  • Walkways
  • Platforms
  • Custom mounting and bottom plates are a available for unique applications

See why Davit Master's Marine Elevator Lifts are the captain's choice. Call 1-800-878-5560 today.
