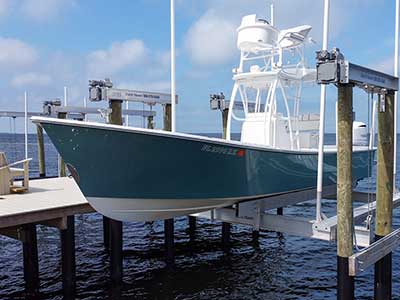

boat lifted by a davit master cradle lift on a dock

Cradle Lifts

Davit Master Boat Cradle Lifts are high on satisfaction, low on maintenance.

Your boat deserves nothing but the best and it starts with getting the right lift. Not sure which Cradle Lift you need? Relax - help is just a phone call away. Davit Master introduced the first Cradle Lift in 1980, now widely known for its reliability, speed and quiet operation. Today you have even more options and our experts are here to help you find the Cradle Lift that delivers the speed you need and the maintenance level that works for you. Davit Master's Boat Cradle Lifts come in aluminum, galvanized steel or a combination of both to brave the elements without the wear while gracefully hoisting up to 45,000 pounds. Pipe drives with aluminum cable winders between support beams allow for smooth operation while maintaining a sleek appearance.

Cradle Lifts with power and convenience.

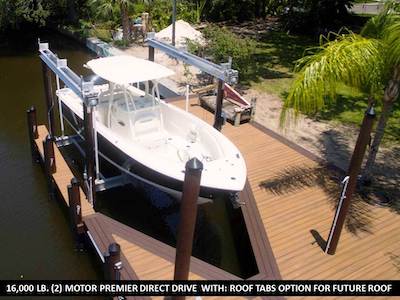

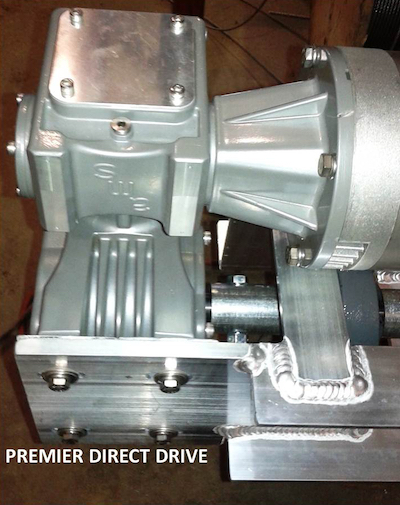

The Premier Direct Drive cradle lift system delivers protection and power while requiring very little maintenance. You'll be looking good and carefree thanks to this premier direct drive lift thats totally enclosed with precision gearing and oil bath.

Capacity No. of Motors Motor Finish Amps per 110v vs 220v No. of Pilings Alumninum Cradle Lower Beam Size Galvanized Cradle Lower Beam Size Carpeted #1 PT Boards
7,000 (2) 3/4 HP Stainless 26 - 13 4 (2) 6" x 12' (2) 6" x 12' 3" x 10" x 12'
10,000 (2) 3/4 HP Stainless 26 - 13 4 (2) 8" x 12' 6" (2) 6" x 13' 3" x 10" x 12'
13,000 (2) 1 HP Stainless 27.2 - 13.6 4 (2) 8" x 12' 6" (2) 8" x 13' 3" x 10" x 12'
16,000 (2) 1.5 HP Stainless 30.4 - 15.2 4 or 6 (2) 10" x 15' (2) 10" x 15' 3" x 10" x 14'
EXT 16,000 (2) 1.5 HP Stainless 30.4 - 15.2 4 or 6 (2) 10" x 15' (2) 10" x 15' 3" x 12" x 16'
20,000 (2) 1.5 HP Stainless 30.4 - 15.2 4 or 6 (2) 10" x 17' (2) 10" x 17' DBL 3" x 12" x 16'
20,000 (4) 1 HP Stainless 220 V - 28 A 8 (2) 10" x 17' (2) 10" x 17' DBL 3" x 12" x 16'
25,000 (4) 1.5 HP Stainless 220 V - 30.4 A 8 (2) 12" x 17' (2) 10" x 17' DBL 3" x 12" x 16'
  • All welded design for strength and durability
  • 6061-T6 marine grade aluminum or hot-dipped galvanized steel
  • CNC machined components
  • Dual channel beam support with concealed pipe drive
  • Self-aligning pillow block bearings with grease fittings
  • Aluminum grooved cable winders
  • Cable dead end brackets welded to both channel beams
  • Channel spanner beams provides strength and rigidity to lower system
  • Heavy duty adjustable pipe guides with pvc pipe and caps
  • Adjustable chock system
  • Carpeted #1 pressure treated 3" chock boards
  • Stainless steel motors
  • Aluminum totally enclosed premier direct drive oil bath gear reducer
  • Stainless steel cable
  • Stainless steel hardware
  • Aluminum sheaves with 3/4" stainless steel bolts with grease fittings
  • Individual switches for accurate leveling with weather resistant enclosures
  • Quiet, dependable operation
  • Easy installation and technical support
  • Product liability coverage
  • Comprehensive warranty
  • Radio motor control with hand-held transmitter
  • Limit switch - set upper and lower stopping points
  • Faster motors
  • Motor covers
  • Plain cable winders
  • Cable keepers, bolt-on
  • Vinyl covered aluminum bunks (aluminum lifts only)
  • Custom chocks: Riser, T-style, and Pontoon
  • Aluminum walkway
  • Aluminum work platform
  • Aluminum step
  • Aluminum boarding platform
  • Aluminum tide guides
  • Aluminum tide guides
  • Roof tabs
  • Cantilever brackets
  • Marina brackets
  • Beam dimensions
  • Piling spacing
  • Support beams with roof tabs
  • Cantilevered support beams
  • Dual support beams (marina application)
  • Angled lower beams
  • Chock systems

The flat plate lift system provides an economical alternative and is made with the same care and attention-to-detail as Davit Master's other Boat Cradle Lifts.

Capacity No. of Motors Motor Finish Amps per 110v vs 220v No. of Pilings Aluminum Cradle Lower Beam Size Galvanized Cradle Lower Beam Size Carpeted #1 PT Boards
7,000 (2) 3/4 HP Painted 26.8 - 13.4 4 (2) 6" x 12' (2) 6" x 12' 3" x 10" x 12'
10,000 (2) 3/4 HP Painted 26.8 - 13.4 4 (2) 8" x 12' 6" (2) 6" x 13' 3" x 10" x 12'
13,000 (2) 3/4 HP Painted 26.8 - 13.4 4 (2) 8" x 12' 6" (2) 8" x 13' 3" x 10" x 12'
  • All welded design for strength and durability
  • 6061-T6 marine grade aluminum or hot-dipped galvanized steel
  • CNC machined components
  • Dual channel beam support with concealed pipe drive
  • Self-aligning pillow block bearings with grease fittings
  • Aluminum grooved cable winders
  • Cable dead end brackets welded to both channel beams
  • Channel spanner beams provides strength and rigidity to lower system
  • Heavy duty adjustable pipe guides with pvc pipe and caps
  • Adjustable chock system
  • Carpeted #1 pressure treated 3" chock boards
  • Stainless steel motors
  • Aluminum totally enclosed premier direct drive oil bath gear reducer
  • Stainless steel cable
  • Stainless steel hardware
  • Aluminum sheaves with 3/4" stainless steel bolts with grease fittings
  • Individual switches for accurate leveling with weather resistant enclosures
  • Quiet, dependable operation
  • Easy installation and technical support
  • Product liability coverage
  • Comprehensive warranty
  • Radio motor control with hand-held transmitter
  • Limit switch - set upper and lower stopping points
  • Faster motors
  • Motor covers
  • Plain cable winders
  • Cable keepers, bolt-on
  • Vinyl covered aluminum bunks (aluminum lifts only)
  • Custom chocks: Riser, T-style, and Pontoon
  • Aluminum walkway
  • Aluminum work platform
  • Aluminum step
  • Aluminum boarding platform
  • Aluminum tide guides
  • Roof tabs
  • Cantilever brackets
  • Marina brackets
  • Beam dimensions
  • Piling spacing
  • Support beams with roof tabs
  • Cantilevered support beams
  • Dual support beams (marina application)
  • Angled lower beams
  • Chock systems

When it's time to unwind, you can count on Boat Cradle Lifts from Davit Master. Call 1-800-878-5560 today.
