Boat lifted with Davit Master Boat Ramp Winches

Boat Ramp Winches

Need a Boat Winch? Davit Master has plenty of pull.

You finally have the boat you've always wanted so when it comes time to pull it up ramps or inclines, you want the peace of mind of knowing there's plenty of power behind that cable. You can count on Davit Master's internationally recognized Boat Ramp Winch to pull your boat safely without a hitch.

The Boat Winch with all the power you'll ever need.

Come to Davit Master for Boat Ramp Winches that work like a dream no matter what type of boat lift system you have. Need something special? Give us a call and we'll come up with a custom installation based on your specific requirements.

Every Davit Master Boat Winch is gear-driven for smooth, quiet operation just the way you like it. Plus, non-corrosive parts mean low maintenance and more fun. The motor and gear box are factory sealed to weather the elements like a real pro. Pull up to 6,500 pounds with a single line, no problem.

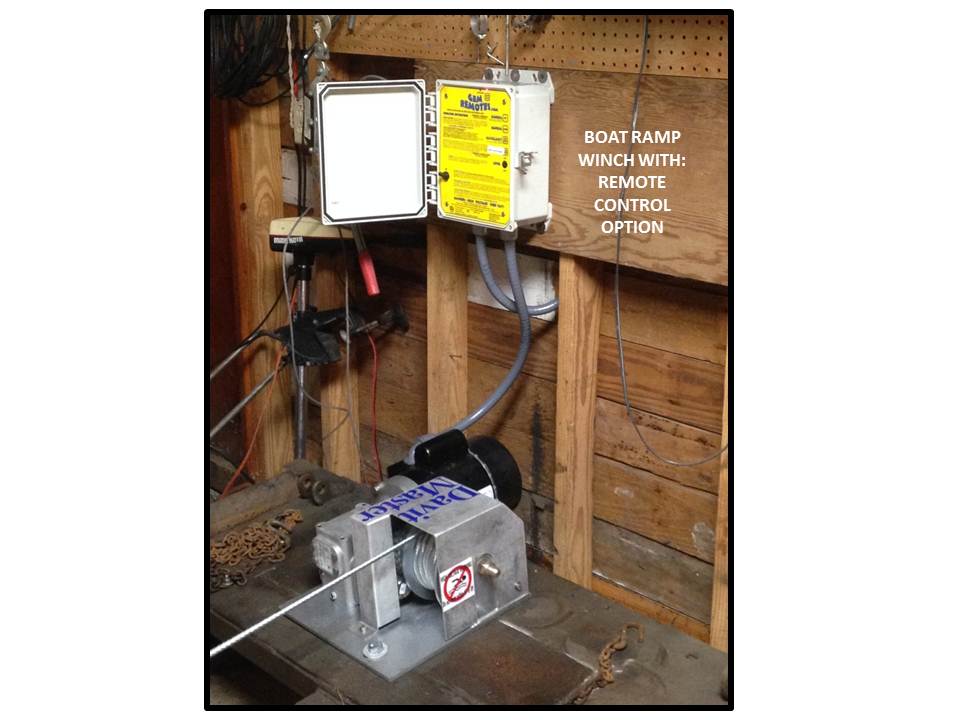

Davit Master Boat Ramp Winches are easy to install. The motor is factory wired with a GFI power cord and Up/Down switch. For added convenience consider the Remote Control option.

ORDER NOW

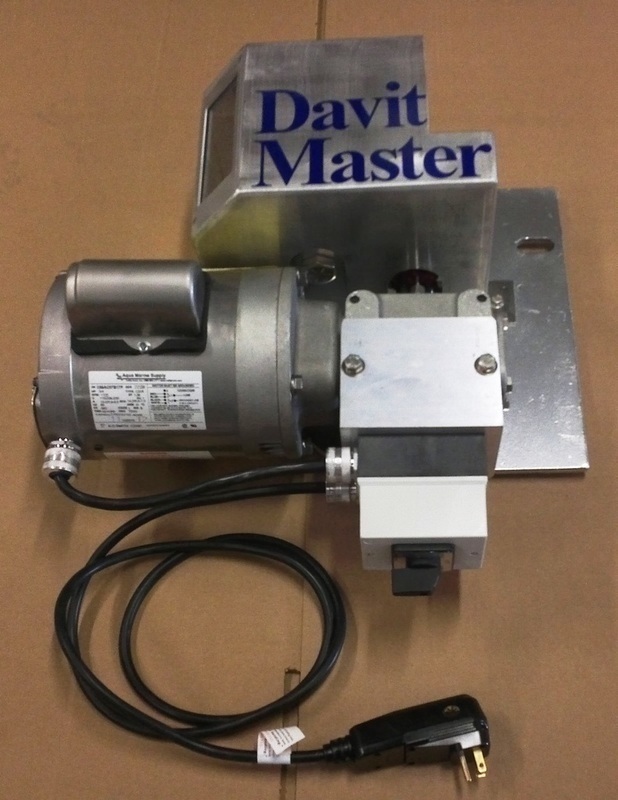

The BR-65 has a long history of proven performance for pulling boat trailer and rail systems up inclined ramps. The BR-65 Boat Ramp Winch has a rated capacity of 6,500 lbs. at a 30% grade. The BR-65 is shipped fully assembled and ready to install. Once the winch is firmly anchored to a solid foundation, simply spool the cable onto the cable drum and plug in the power cord. It's that easy!

Capacity Grade % Angle Rise" IN 12'
0% 0"
11,500 lbs 10% 14"
8,000 lbs 20% 11° 29"
6,600 lbs 30% 17° 43"
5,000 lbs 40% 22° 58"
MOTOR 1 hp - 3450 rpm 125V 250V
CABLE DRUM Cable must be ordered seperately

Cable Drum capacity:
90' - 5/16"
150' - of 1/4"
200' - 3/16"
WINCH TRAVEL SPEED 9 feet/minute with empty drum
GEAR RATIO 207.7 to 1
GEARING Sealed oil-filled right angle gear box - Holds load in any position
WIRING 12/5 - motor to switch
12/3 power cord with 3 prong plug
SWITCH reversing cam switch
OPTIONS Wireless remote control system
WINCH SIZE Overall Sixe: 18" x 21"; Galvanized steel Base: 13.5" x 13.5"
WINCH WEIGHT 110 lbs
  • 1HP, 3450 motor
  • Direct gear drive for single part line application
  • Large Galvanized Cable Drum
  • 9' Per Minute Travel Speed on an Empty Cable Drum
  • Reversing switch control
  • 6500 lbs. Capacity at a 30% Grade
  • Self Contained Oil Filled Gear Box
  • Aluminum Gear Guard
  • 6' Power Cord
  • 3/8” Galvanized Mounting Base Plate
  • 110v Wired GFCI Plug
  • Remote Controls
  • Canvas Winch Cover
  • 220v Wired GFCI Plug
  • Swivel Hook
  • Longer Power Cords
  • Switch w/Extended Reach Cord
  • Cable

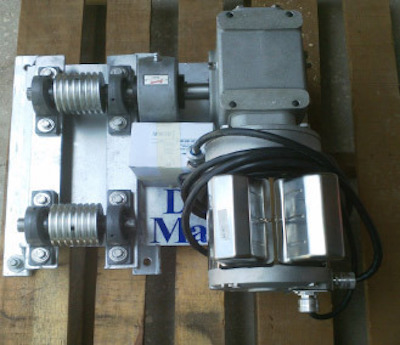

The BR 85 Push-Pull winch is designed for minimum grade boat ramps where the grade does not permit gravity feed down the ramp. Maximum allowable grade is 10%. The BR-85 is shipped fully assembled and ready to install. Once the winch is firmly anchored to a solid foundation, simply spool the cable onto the cable drums and plug in the power cord. It's that easy!

  • 1.0 HP Stainless SteelEnclosed Motor
  • Two (2) cable winders with shaft and pillow blocks
  • Reversing switch controls
  • Self Contained Oil Filled Gear Box
  • 6' Power Cord
  • Galvanized Mounting Base Plate
  • 110v Wired GFCI Plug
  • Remote Controls
  • Canvas Winch Cover
  • 220v Wired GFCI Plug
  • Swivel Hook
  • Longer Power Cords
  • Switch w/Extended Reach Cord
  • The BR 85 must be installed with the motor facing away from the load.
  • Use only the mounting holes provided. The mounting plate must be allowed to flex in order to maintain proper gear tension and alignment.
  • Install mounting plate with 5/8” bolts.
  • Mounting plate must be installed level with the ramp.
  • Both cable winder drums must be full of cable with cable in all guides.

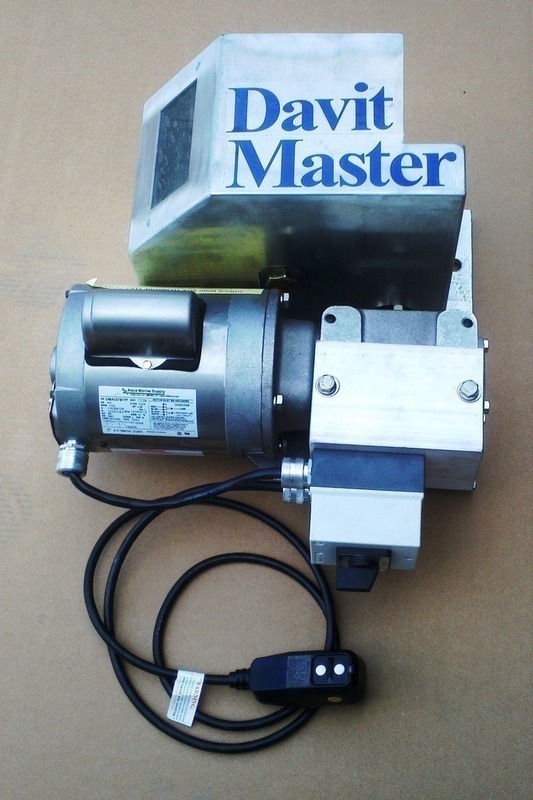

BR100 Boat Ramp Winch. 1.5hp, 3450rmp motor. 110 or 220 GFCI plug. Direct drive gear driven winch for single part line applications. 7500lb capacity at a 30% grade.

Capacity Grade % Angle Rise" IN 12'
0% 0"
12,600 lbs 10% 14"
8,800 lbs 20% 11° 29"
7,200 lbs 30% 17° 43"
5,500 lbs 40% 22° 58"
  • 1.5HP, 3450 motor
  • Direct gear drive for single part line application
  • Large Galvanized Cable Drum
  • 9' Per Minute Travel Speed on an Empty Cable Drum
  • Reversing switch control
  • 6500lbs Capacity at a 30% Grade
  • Self Contained Oil Filled Gear Box
  • Aluminum Gear Guard
  • 6' Power Cord
  • 3/8” Galvanized Mounting Base Plate
  • 110v Wired GFCI Plug
  • Remote Controls
  • Canvas Winch Cover
  • 220v Wired GFCI Plug
  • Swivel Hook
  • Longer Power Cord
  • Switch w/Extended Reach Cord Cable

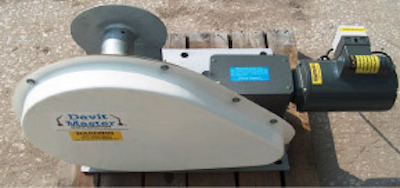

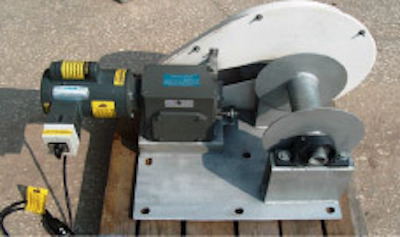

The BR-1000 has a long history of proven performance for pulling boats and rail systems up inclined ramps. The BR-1000 Boat Ramp Winch has a rated capacity of 10,000 lbs. at a 30% grade or 17° angle. The BR- 1000 is shipped fully assembled and ready to install. Once the winch is firmly anchored to a solid foundation, simply spool the cable onto the cable drum and plug in the power cord. It's that easy!

Capacity Grade % Angle Rise" IN 12'
0%
21,850 lbs 10% 14°
15,000 lbs 20% 11° 29°
12,000 lbs 30% 17° 43°
9,500 lbs 40% 22° 58°
  • 1.5 HP, 1725 motor
  • Large Galvanized Cable Drum
  • Heavy duty chain drive system
  • Double 50 chain
  • Chain guard
  • Reversing switch
  • Self Contained Oil Filled Gear Box
  • 6' Power Cord
  • Galvanized Mounting Base Plate
  • 110v Wired GFCI Plug
  • Wireless remote control system
  • 220v Wired GFCI Plug
  • Swivel Hook
  • Longer Power Cord
  • Switch w/Extended Reach Cord

Get the boat ramp winch that's geared towards getting the job done right. Call 1-800-878-5560 or order online today.
